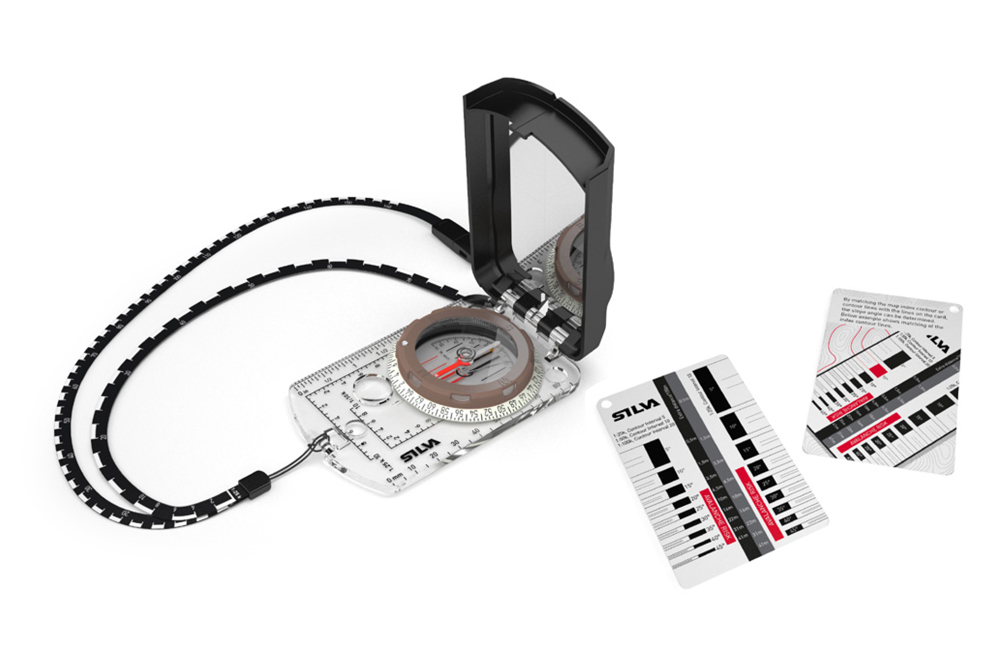

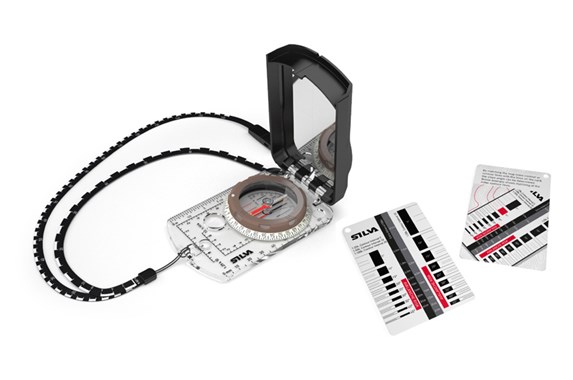

SILVA Compass 16DCL-6400/360

The sighting compass for experienced navigators – used by NATO Forces around the world.
Mainly used by the infantry as a soldier’s or officer’s compass. Additional features include
measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated
adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The
compass has a luminous graduation ring and markings for compass reading in the dark. Once
activated by daylight/flashlight it will give light up to 4 hours of light. The included scale lanyard
and slope card makes it easier to quickly make a distance judgement of your route or to plan
your route in advance.







Fler SILVA Produkter

PRODUCT FEATURES



Type of compass SILVA 1-2-3 System, baseplate,
mirror sighting compass
Compass capsule / needle Liquid filled capsule
Sapphire jewel bearing
High quality steel needle
Hardened steel pivot
Sighting System Mirror
Magnifying lens Yes
Declination adjustment Yes
Clinometer Yes
Luminous markings Yes
Luminaous graduation ring Yes
Illumination / active time
after activation in light 4 hours
Silicon friction feet Yes
Other Tactile grip ring
Patented red/black N/S lines in capsule
GPS scales
Complete baseplate cover

INCLUDED

Scale lanyard (1:24k, 1:25k, 1:50k and 1:62.5k), slope card



SPECIFICATIONS



Graduation 6400/360
Resolution mils / degrees 50 / 2
Measuring scales Base plate: mm, inch
UTM position plotting
scales (Romer scales) 1:25k, 1:50k
Settling time from 90
degree angle within +/- 3 deg 2.7 sec
Settling time from 90
degree angle to complete rest 5 sec
Accuracy +/- 17.8 mils / 1 degree
Water resistance Waterproof
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free fall from
1,5 m height into gravel
Temperature operating range -30 to +60 C
Material Acrylic/PC/ABS/TPU/Acetal
Size (mm) 108x64x20
Weight g 86
Warranty 5 Years
Art.No. 36814-9511 (MN)
36814-9513 (ME)
36814-9515 (MS)
