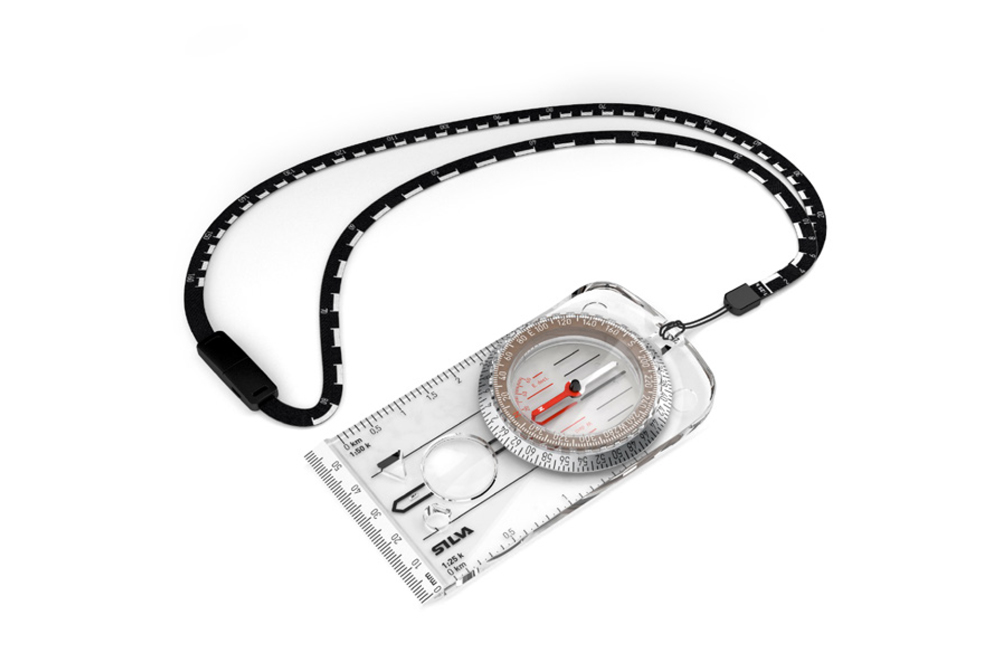

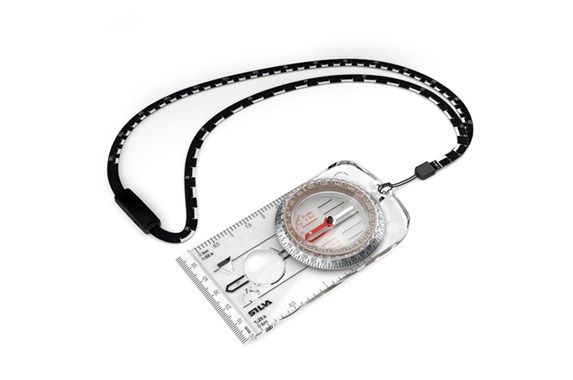

SILVA Compass 3S-360/6400

Base plate compasses for all-round use i.e. for military and outdoor activities. The easy to grip
aluminum compass housing features a stable, easy to read needle. Patented red/black northsouth
lines in the capsule bottom ensure easy and safe settling The baseplate with curved
up back end has a magnifying lens for precision map work together with stencil holes for star
and control markings in the front. The scale slide at the tip of the compass is detachable. The
included scale lanyard makes it easier to quickly make a distance judgement of your route or to
plan your route in advance.





Fler SILVA Produkter

PRODUCT FEATURES

Type of compass SILVA 1-2-3 System, baseplate compass
Compass capsule / needle Liquid filled capsule
Sapphire jewel bearing
High quality steel needle
Hardened steel pivot
Sighting System No
Magnifying lens Yes
Declination adjustment No. Declination scale in capsule
Clinometer No
Luminous markings Yes
Illumination / active time
after activation in light 4 hours
Silicon friction feet No
Other Patented red/black N/S lines in capsule
Detachable scale slide
Aluminum housing

INCLUDED

Scale lanyard (1:24k, 1:25k, 1:50k and 1:62.5k)

SPECIFICATIONS

Available graduations 360/6400
Resolution degrees / mils 2/50
Measuring scales Base plate: 1:25k, 1:50k
Scale slide: 1:15k
UTM position plotting
scales (Romer scales) No
Settling time from 90
degree angle within +/- 3 deg 2.7 sec
Settling time from 90
degree angle to complete rest 5 sec
Accuracy +/- 1 degree / 17.8 mils
Water resistance Waterproof
Altitude use 5000m@-15 C
Impact resistance 30g in XYZ directions and free
fall from 1,5 m height into gravel
Temperature operating range -30 to +60 C
Material Acrylic/aluminum
Size (mm) 115x60x10
Weight g 36g
Warranty 5 years
Art.No. 37584 (MN)
37584-13 (ME)
37584-15 (MS)
